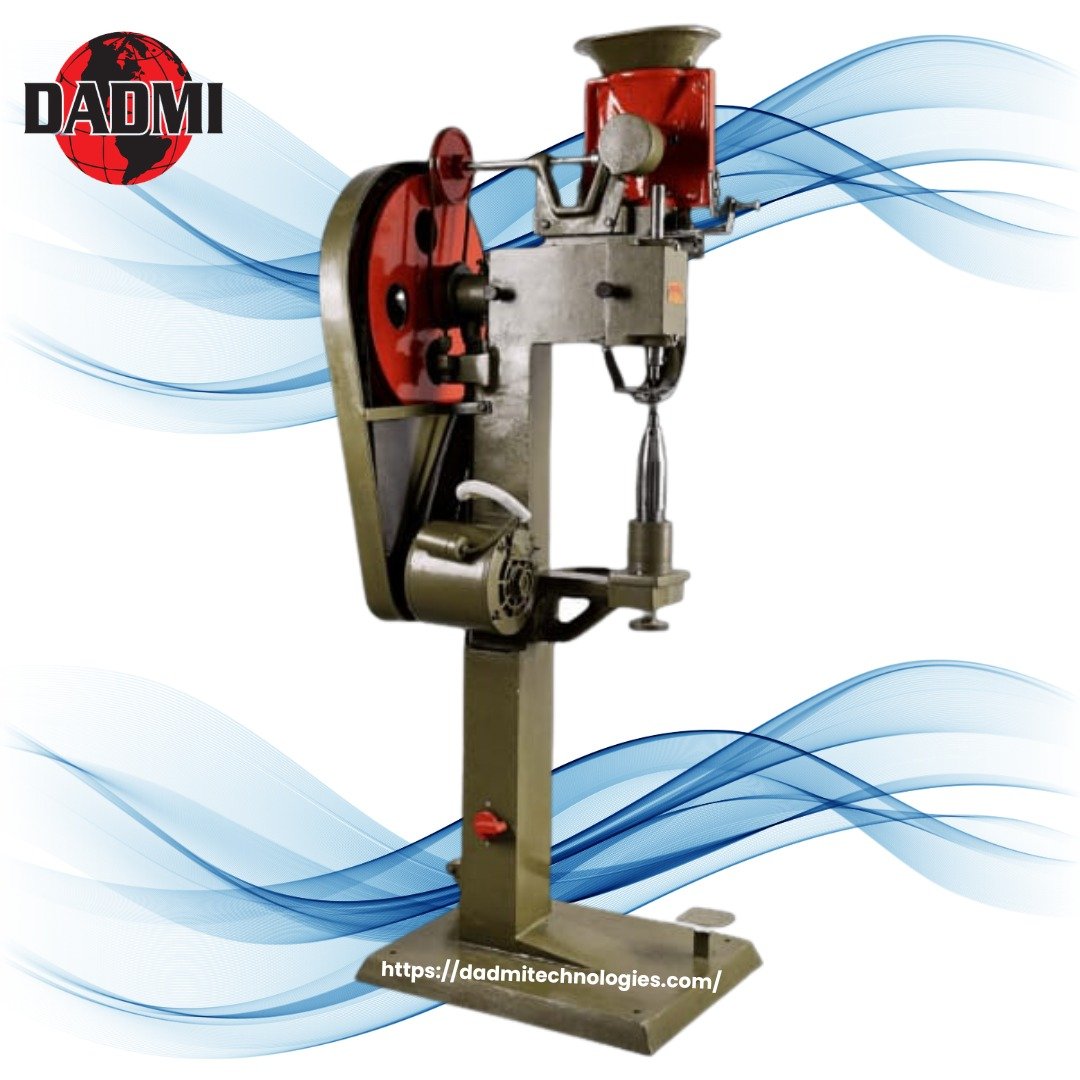

Automatic Eyelet Punching Machine (Single Channel)

Description

• Automatic Eyelet Attachment: The machine automatically fixes eyelets, reducing manual work and helping you produce more in less time.
• Adjustable Eyelet Sizes: Supports a wide range of eyelet sizes, with outer diameters from 6 mm to 8 mm and inner diameters from 3 mm to 6 mm, making it suitable for different job requirements.
• Versatile Applications: Ideal for footwear, belts, paper bags, stationery, and other related products. It works well with various materials, offering flexibility across industries.
• Efficient Throat Depth: With a throat depth of 130 mm, the machine allows easy access to difficult areas, ensuring accurate eyelet placement even in hard-to-reach spots.

Specifications

• Eyelet Face Diameter:                       6 mm to 8 mm
• Eyelet Inner Diameter:                    3 mm to 6 mm
• Eyelet Length:                                      3 mm to 8 mm
• Eyelet Height:                                       3 mm to 8 mm
• Throat Depth:                                        130 mm
• Motor Power:                                        1/2 HP
• Machine Dimensions:                      448 × 478 × 1425 mm
• Machine Weight:                                105 kg

Maintenance

To keep the machine running smoothly and extend its working life, regular maintenance is important.

• Clean the machine after each use to remove dust and material waste.
• Lubricate all moving parts as recommended in the user manual.
• Check regularly for loose bolts, worn parts, or any damage.
• Schedule periodic inspections and professional servicing to maintain peak performance.

Safety Considerations

For safe and trouble-free operation, always follow these safety guidelines:

• Keep hands and other body parts away from moving components while the machine is in operation.
• Always disconnect the power supply before cleaning, servicing, or making adjustments.
• Only trained and authorized operators should use the machine.
• Do not overload the machine or use it for applications other than its intended purpose.
